LM305X Key Features

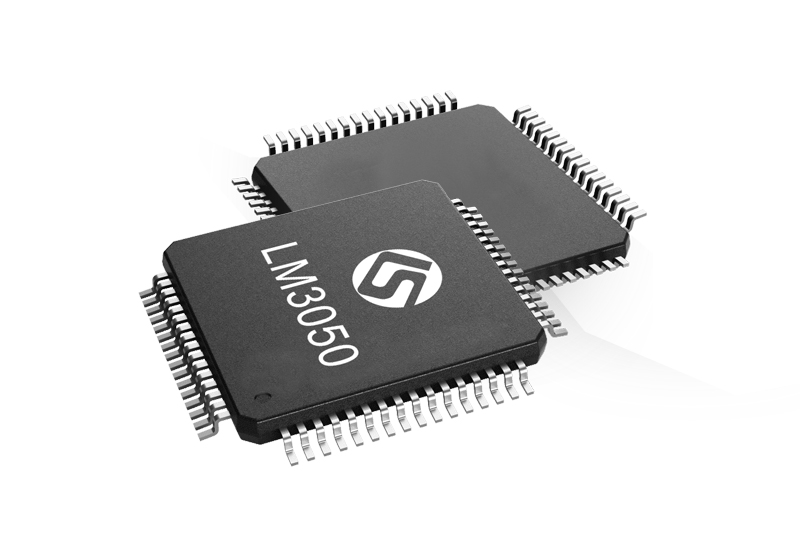

The M305x is a high-performance general-purpose MCU developed by Linkedsemi that
integrates a core with frequencies up to 128MHz. Up to 512KB of FLASH and up to
128KB of SRAM memory are available. Widely used in industrial control, motor drives,
power monitoring and alarm systems, consumer and handheld devices, games and GPS,
electric bicycles, optical modules and other fields.
- 32-bit MCU with adjustable clock frequency up to 128MHz;
- Built-in high speed memory FLASH up to 512KB, 128kB SRAM;
- Two 12-bits SAR-ADC/DAC
- Industrial grade product operating temperature range: -40℃~+105℃;
- Operating Voltage: 1.8V < VDD < 3.6V
- Ultra-low power consumption design, standby current as low as 100nA in deep sleep
mode;
- Support CAN, UART, SPI, I2C a variety of communication protocols and interfaces;
- Integrated encryption functions: ECC/SM2, DES/AES, SHA256/SM3, SM4, CRC;
